My journey into Clean Architecture began with a simple goal: to deeply understand Primal, the open-source Nostr project I’m contributing to. I chose to write about this project because I genuinely believe it’s a prime example of a well-structured application that follows modern development principles.
It’s an open-source project that can stand alongside modern social media giants like X (formerly Twitter), Facebook, and YouTube, all while championing the core principle of censorship-resistant communication.
So, let’s begin.
1. A Brief Introduction to Clean Architecture Principles
At its core, Primal’s architecture is built on layers, each with a single, clear responsibility. Think of it as a set of concentric circles. The fundamental principle is the Dependency Rule: outer layers can depend on inner layers, but inner layers must remain completely independent of the outer ones.
This makes perfect sense. An Entity—our core data model—shouldn’t change just because we switch from one UI library to another or fetch data from a new source. The outer layers, like the UI, are the parts we change most often, while the inner layers, our business logic, should remain stable.

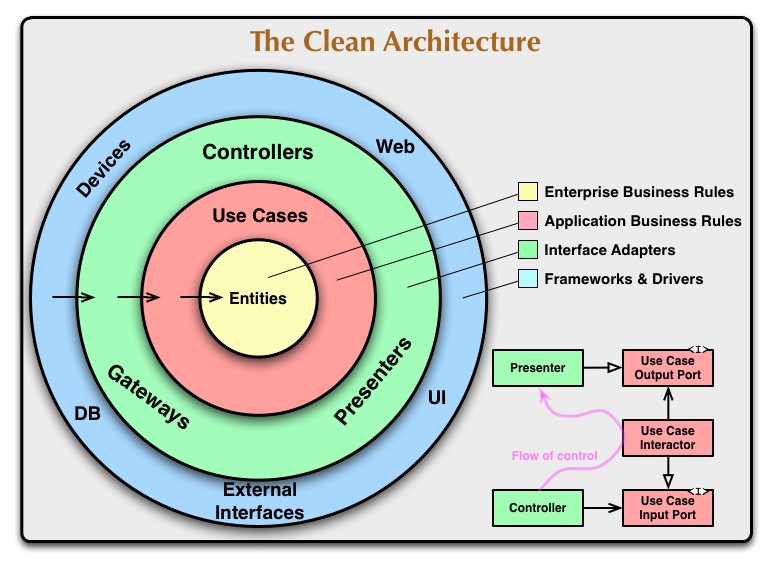

This illustration shows how it works, and we’ll explore each layer.
The Domain Layer: The Core of the Application
As the illustration shows, the domain layer is the innermost circle. It depends on nothing. This is the heart of the application, containing all the core business logic, data models, and repository interfaces. Crucially, it has zero Android dependencies.
In the Primal project, the domain layer is organized into packages like nostr, primal, and wallet. Let’s look at NostrEvent, a fundamental model in the nostr package:
@Serializable
data class NostrEvent(
val id: String,
@SerialName("pubkey") val pubKey: String,
@SerialName("created_at") val createdAt: Long,
val kind: Int,
val tags: List<JsonArray> = emptyList(),
val content: String,
val sig: String,
)
This data class defines what a Nostr event is. It will always have properties like a pubKey and a createdAt timestamp. It doesn’t matter if we use a different database engine or another technology; this is how a NostrEvent is represented throughout the system.
Beyond models, the domain layer defines contracts for how data should be managed through repository interfaces. For example, the LightningRepository interface dictates how any part of the app should interact with Lightning invoices:
interface LightningRepository {
suspend fun getPayRequest(lnUrl: String): Result<PayRequest>
suspend fun getInvoice(
callbackUrl: String,
amountMSats: Long,
comment: String?,
): Result<InvoiceResponse>
}
Now, any part of the application that needs to handle invoices knows it must go through this interface and can expect these specific return values. As you can see, there are no Android dependencies here.
This is where the magic happens. Because this layer is pure Kotlin, the Primal iOS app can share this exact same domain module. We get to have the same core business logic for both Android and iOS while building fully native UIs with Jetpack Compose and SwiftUI, respectively (which is amazing).
Similarly, in the primal package, we define domain-specific models like Stream and their corresponding repository interfaces:
data class Stream(
val aTag: String,
val eventId: String,
val eventAuthorId: String,
// ... other properties
)
interface StreamRepository {
fun observeLiveStreamsByMainHostId(mainHostId: String): Flow<List<Stream>>
suspend fun findWhoIsLive(mainHostIds: List<String>): Set<String>
fun observeStream(aTag: String): Flow<Stream?>
// ...
}
To conclude, the domain layer is where we define our business logic. It provides a clear contract for our Android and iOS applications, dictating WHAT the application does, not HOW it does it. This clean separation is the foundation of a robust and maintainable system.
The Use Case Layer: Where the Magic Happens
We just talked about the domain layer—the core business rules that are universal across the Primal ecosystem. Now, let’s move one layer out to the Use Case Layer, which represents the application-specific business logic.
This layer is responsible for orchestrating the flow of data to and from the domain entities. It executes specific actions a user can perform in the Primal app, such as:
- Liking a post
- Bookmarking a note
- Muting a user
- Sending a zap…
Essentially, a use case coordinates all the necessary steps to complete an action. For instance, when you like a post in Primal, the application first performs an optimistic update (immediately showing the post as liked in the UI) and then publishes the “like” event to the Nostr network. The use case layer orchestrates this entire process.
In the Primal project, you won’t find a dedicated usecase module. Instead, this logic is pragmatically integrated within the repository implementations in the data module. These repositories aren’t just simple data containers; they act as the use cases themselves.
Let’s look at two examples from EventInteractionRepositoryImpl.kt.
Example 1: Liking a Post
The likeEvent method is a perfect illustration of a use case. It doesn’t just send a network request; it manages the complete flow:
override suspend fun likeEvent(
userId: String,
eventId: String,
eventAuthorId: String,
// ...
) = withContext(dispatcherProvider.io()) {
val statsUpdater = EventStatsUpdater(...) // Prepares for UI updates
try {
// 1. Optimistically update the local database
statsUpdater.increaseLikeStats()
// 2. Sign and publish the event to the Nostr network
primalPublisher.signPublishImportNostrEvent(...)
} catch (error: NostrPublishException) {
// 3. Revert the local database state if the network call fails
statsUpdater.revertStats()
throw error
}
// ...
}
This is a classic use case: it orchestrates the local database (EventStatsUpdater) and a network call (primalPublisher) while handling potential errors gracefully.
Example 2: Sending a Zap
The zapEvent method is an even more complex use case, coordinating multiple components to perform a single, seamless action for the user:
override suspend fun zapEvent(
userId: String,
walletId: String,
// ...
): ZapResult {
// 1. Prepare for an optimistic UI update
val statsUpdater = target.buildPostStatsUpdaterIfApplicable(userId = userId)
statsUpdater?.increaseZapStats(...)
// 2. Create a Nostr Zapper (a wallet interface)
val nostrZapper = nostrZapperFactory.createOrNull(walletId = walletId)
?: return ZapResult.Failure(...)
// 3. Execute the full zap flow (fetch invoice, pay, etc.)
val result = nostrZapper.zap(data = ZapRequestData(...))
// 4. Revert the UI state if the zap fails
if (result is ZapResult.Failure) {
statsUpdater?.revertStats()
}
return result
}
The Data Layer: Managing the Flow of Information
In Primal’s architecture, the data module is responsible for one thing: managing data. It orchestrates where data comes from and where it’s stored, acting as the concrete implementation of the contracts defined in our domain layer. It doesn’t care how we display this data, and that shouldn’t be a concern when building this part of the app. This module is composed of several key sub-modules:
local Module: The On-Device Database
This module handles all local data persistence. It uses Room, Google’s library for managing SQLite databases on Android.
- Database Schemas: Inside the
schemas/directory, you’ll find JSON files that represent each version of our database schema. Room uses these files to handle migrations, ensuring that user data is preserved safely across app updates. - Entities & DAOs: Here, we define our database tables as
@Entityclasses (e.g.,PostData,ProfileData). For each entity, we have a corresponding DAO (Data Access Object), such asPostDao. These DAO interfaces provide abstract methods for creating, reading, updating, and deleting data from the database, separating the SQL logic from the rest of the application.
remote Module: The Network Layer
This is where all communication with external servers happens.
- API Definitions: This module defines interfaces like
FeedApiandUsersApi, which specify the available network calls. - Implementations: The implementations of these APIs (e.g.,
FeedApiImpl) use thePrimalApiClientfrom thecoremodule to execute actual network requests, fetching data from the Primal backend over WebSockets.
repository Module: The Single Source of Truth
As we’ve discussed, this is where the Use Case logic primarily lives in the Primal project. The repositories are the linchpin of the data layer.
- Implementing Domain Contracts: This module contains the implementations of the repository interfaces defined in the
domainlayer (e.g.,FeedRepositoryImpl). - Orchestrating Data Sources: Repositories are responsible for coordinating the
localandremotedata sources. A typical workflow involves fetching fresh data from the API, storing it in the local Room database for caching, and then providing that data to the rest of the app. This ensures a fast, offline-first user experience.
The core Module: The Foundational Toolkit
It’s also important to mention that we have a core layer. Here, we define the fundamental, low-level components for our mobile application. Think of it as the project’s foundation.
This is where we’ve set up things like networking-http, networking-primal, and networking-upload using the Ktor framework. There’s also a utils package here, which holds all the helper functions we use often throughout the application.
The Controller Layer: Orchestrating User Actions with ViewModels
In our architecture, the ViewModel takes on the role of the “Controller.” Its primary job is to manage the flow of user interactions, receive events from the UI, and direct them to the appropriate business logic.
In the Primal application, every screen has a corresponding ViewModel. Let’s break down its responsibilities:
- Receiving User Input: When a user clicks a button on the screen (the
View), that action is sent as an event to theViewModel. - Orchestrating Logic: The
ViewModeldecides what to do with that event. Using Dependency Injection (DI), it has access to our repositories (which contain the use case logic). It calls methods on these repositories to perform specific actions like fetching data, liking a post, or sending a zap. - Managing State: The
ViewModelholds and updates the UI state. After a repository completes its work, theViewModelupdates its state, and the Jetpack Compose UI automatically reacts to these changes, ensuring the user always sees the latest information.
By using ViewModels as our controllers, we get the benefit of them being lifecycle-aware, which prevents data loss on configuration changes (like screen rotation) and cleanly separates our UI logic from the business logic.
The Presentation Layer (UI): Bringing It All to Life
Finally, we arrive at the outermost layer: the Presentation Layer. This is our app module, and it’s the only part of the system the user actually sees and interacts with. Its job is to take the data prepared by the lower layers and present it to the user, as well as to capture user actions and forward them to the ViewModel.
This is also where the platform-specific magic happens. Our Android application uses Jetpack Compose, while the iOS app uses SwiftUI. This means we get a fully native look, feel, and performance on each platform, all powered by the same shared core logic.
Conclusion: Putting It All Together
By adhering to Clean Architecture, the Primal project achieves a clear separation of concerns.
- The
domainlayer defines the core rules and models, independent of any framework. - The
datalayer, with its repositories, manages the “how” and “where” of data, acting as the bridge to external sources and containing our use case logic. - The
coreandsharedmodules provide the foundational tools needed for everything to run. - Finally, the
applayer, with its ViewModels (Controllers) and Compose UI (Views), presents this data to the user and captures their interactions.
